HY-CUBE

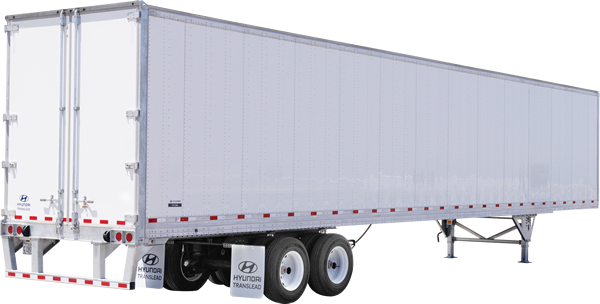

Hyundai Translead’s best selling trailer, the HT HY-Cube®, offers a greater interior width for increased load capacity plus double decking capabilities. The snap-in plastic liners are made of recycled materials and are strong and easy to repair. A 101″ lining-to-lining width offers up to 4.050 cubic feet of interior volume.

FEATURES & BENEFITS

  • Corrosion Resistance Package includes HOT-DIP GALVANIZED steel rear frame, rear impact guard, inner and outer landing gear legs, landing gear mounting brackets and bracing, license mounting plate and mid turn signal bracket. All standard components for extended service life and superior appearance
  • Six (6) pick-up plate longitudinal channel sections for maximum strength for fifth wheel to prevent “dishing”
  • Extra deep base rail with rivet guards
  • Logistics slotted side posts standard on 12, 16 and 24 centers as well as a logistic slotted rear frame
Hyundai Translead HT Cube

SPECIFICATIONS

GENERAL
Length Exterior: 53′ 0″
Interior: 52′ 6″
Width Exterior: 102.36″
Interior: 101″ lining to lining
Height Exterior: 13′ 6″
Interior: 110
Capacity 68,000 GVWR
4050 cu. ft. of interior volume
Tare Weight 14,200 lbs
BODY CONSTRUCTION
Side Sheets Side sheets 0.050″ thick pre-painted white aluminum.
Side Posts Slotted “A” logistic galvanized steel posts on 16″ centers, 0.45″ deep × 6.57″ wide, with posts on 12″ centers over coupler and landing gear areas.
Roof One piece, 0.040″ thick, full width aluminum sheet, tension leveled prior to installation.
Roof Bows Galvanized steel anti-snag bows on 24″ centers. Pre-bonded to roof sheet. Roof bows installed using four solid rivets, two per end.
Front Wall Four hi-tensile, hat shaped posts securely fastened with 6 heavy-duty fasteners and reinforced with a special angle clip, welded to the upper coupler and covered with 0.050 aluminum front sheets.
Rear Frame Hot-dipped 3/16″ thick galvanized steel construction with low profile header, tube shaped posts. Forged steel angle iron in top corners for added rack resistance. Lights recessed in rear sill with heavy-duty protection bars.
Rear Doors Composite construction of 1/2″ composite panel covered by .019″ thick pre-painted white galvanized inner and outer skins. Dual durometer seals bonded to door. Four hinges and one anti-rack locking bar with nylon bushings per door. Lock handles fitted with rubber grips for operator comfort and safety.
Interior Lining White 0.235″ thick HDPE lining installed full height between uprights with no fasteners. Side lining hooks into place for easy replacement. Exterior grade 0.50″ plywood installed on bottom and 0.25″ plywood installed on top over front wall.
UNDERFRAME
Crossmembers Four inch deep, hot rolled steel I-beam, 80,000 psi yield strength, located on 12″ centers. Hat shaped crossmembers ahead of landing gear. Rear 4′ of trailer has crossmembers located on 8″ centers.
Upper Coupler A.A.R. rated king pin, 3.40″ deep.
Floor Laminated Oak 1-3/8″ nominal thickness with three screws per floorboard. With a 0.125″ thick steel × 12″ deep diamond plate threshold plate.
Landing Gear Hot-dip galvanized wing plate and support gear bracing mounted to five crossmembers. Two speed, 50,000 lb. capacity, A.A.R. rated, with 10″ × 10″ sandshoes. Roadside crank handle.
Rear Underride Guard Constructed per CMVSS 223 Regulations. Hot-dip galvanized underride guard. Bolt-on type with special 4″ square Guard tube with end cap to prevent slippage and recessed for conspicuity tape.
SUSPENSION
Suspension Hedrickson Vantraxx HKANT40K Air Ride
Hub & Drums Ten stud, hub piloted with outboard mounted cast brake drums.
Wheels Pre-painted white 8.25 × 22.5 steel disc.
Tires Low profile 22.5 radial tires.
Axles Five inch round, 22,500 lb. rating, 77.5″ track.
Brakes Non-asbestos lining 16.5″ × 7″ quick change type, “S” cam operated automatic slack adjuster.
ABS System Two sensor, one modulator valve (2S/1M) system, PLC4Trucks compatible system.
Oil Seals Stemco Platinum Performance.
ELECTRICAL
Lights & Wiring Color coded 12-volt sealed wiring system, internal ground, and special watertight molded connectors to accept sealed lamps.
PAINT & FINISH
Paint Steel front impact guard is abrasive blasted, coated with zinc rich epoxy primer andwhite finish top coat
Undercoating Flooring is pre-undercoated and crossmembers are dipped in a black color coating prior to installation. Landing gear and running gear areas painted with gray color non-hardening rust preventative.
Decals D.O.T. approved Hyundai Translead logo conspicuity tape and FHWA inspection sticker.
Miscellaneous Truck-Lite P/N 97960 registration cardholder on frontwall. White mud flaps with Hyundai logo mounted on rear of slider subframe.
Warranty Limited five year warranty.
