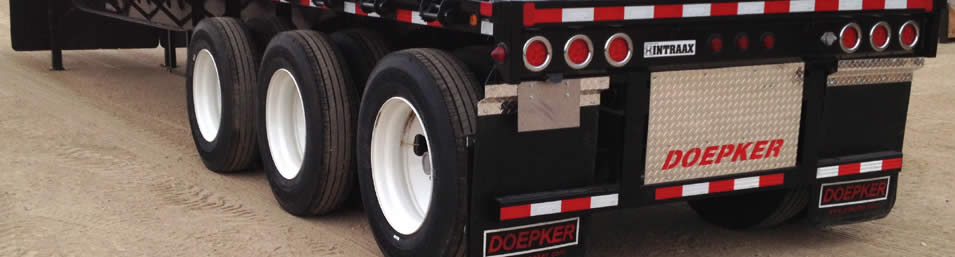

STEEL FLAT DECKS
Our steel flats are built strong and light. In fact, our tare weight on all our steel decks rivals aluminum / steel combo flats of the same spec. Offering an all steel platform offers incredible strength that is ready to work in the harshest of conditions. To protect your investment, we coat the steel outside with a 100% cold galvanization / zinc spray to combat corrosion. As always, part of our paint process ensures our trailers enter a large curing oven to ensure the perfect adhesion and paint properties when it leaves our production facility, enabling us to give you a finished paint product that is unmatched in the industry. Visit your local Doepker dealer for information.
SPECIFICATIONS
| STANDARD FEATURES | |
| Length | 53′ |
| Overall Width | 8 1/2′ |
| Deck Height | Approx 59″ at Front and 55 1/2″ at Back |
| Distributed Load | Approx 75000 Lbs 10′ Concentrated Load – Approx 60000 Lbs 4′ Concentrated Load – Approx 50000 Lbs |
| Tare Weight | Approx 13700 Lbs |
| GVWR | 37500 kg |
| Landing Gear | Jost Magnum 2 Speed Landing Gear |
| King Pin | Set at 24″ – 1/4″ or 3/8″ Coupler Plate Available |
| Main Beams | Web: 3/16″ High Tensile Flange: 3/8″ x 6″ High Tensile Steel |
| Cross Members | 4″ High Tensile Jr I Beam on 16″ Centers |
| Side Rail | Tubing with 3/8 x 2″ Tie Bar on Bottom of Jr I-Beam or 6″ Channel with 3/8″ x 2″ Rub Rail Optional: 6″ Channel with 3/8″ x 3″ HD Rub Rail Stake Pockets Set at 48″ Centers Optional: Stake Pockets Set at 24″ Centers |
| Rear Bumper | 10 Gauge Plate Rear Bumper Rear Impact Guard Doepker ICC Panel at Back Optional: Dock Bumpers at Back of Trailer Optional: Single Point or Dual Tow Hooks at Back of Trailer |
| Winches | D/S or Staggered Design – 26 Winches with J-Hooks on Opposite Side Optional: Tarp Hooks on 24″ Centers |
| Decking | 2″ x 6″ T & G Fir Decking Optional: Hardwood Decking Optional: Coil Option – 2″ x 6″ T & G Fir Outside Main Rails, Hardwood Inside Main Rails |
| Air System | Aluminum Air Tanks Inline Air Filtration System Built into Glad hands Air Gauge Box with Window |
| Tires | Michelin or BF Goodrich |
| Rims | 22.5 or 24.5: Various Steel and Aluminum Options |
| Serial Plate(s) | Canada/U.S. |
| Safety Certified | Yes |
| PAINT AND FINISH | |
| Special Coatings | Hot Dip Galvanized Main Deck and Frame Landing Gear Painted Black Softcoat Grey Coating on Suspension |
| Safety | Reflective Tape |
| SUSPENSION | |
| System | Hendrickson Intraax HXL5 Long Life Dressed Axle – AAT-23K-LDA-14 Air Ride with Cam Tube Enclosures 4′ Sliding Suspension on 6″ Spacings Optional: Doepker Auto Lift Management System with Meritor Control Valve Optional: Truckweight Wireless Scale System Optional: Chain Axle Slings on all Axles |
| Brakes | Abex 16 1/2″ x 7″ Extended Life |
| Antilock Braking System | Meritor Wabco 2S2M Optional: 4S2M or 6S4M (with 2 Indicator Lights) |
| Axle Spread | 60″ Tridem; 77-1/2″ Track Width |
| Auto Slack Adjusters | Gunite |
| Spring Brake Pots | 30/30 TSE Omnibrake |
| Wheel End | Cast Hub and Drum Optional: Duralight Hub and Centrifuse Drum Combinations Optional: Hubodometer – Metric or Imperial |
| LIGHTING | |
| Wiring Harness | Severe Duty Sealed Harness System Custom Designed by Trucklite for our Light Packages |
| Lighting | Trucklite LED as per CMVSS with Side Signals Optional: 7 Wire Socket at Front or Back Optional: 4 Wire Socket at Front or Back Optional: Wide Load Lights |
| PROTECTIVE FEATURES | |
| Mudflaps | Doepker Mudflaps at Back of Trailer Optional: Mudflaps in Front of Brake Bots on Front Axle Optional: Mudflaps Full Width in Front of Landing Gear |
| Spare Tire Carrier | Optional: Spare Tire Carrier on C/S |
| Toolbox & Dunnage Options | Optional: Set of Toolbox Brackets on D/S & C/S for a 43″ or 55″ Long Box Optional: 24″ D x 24″ H x 55″ L Aluminum Checkerplate Toolbox Optional: 24″ D x 24″ H x 55″ L Premium Smooth Aluminum Toolbox Optional: 24″ D x 30″ H x 55″ L Premium Smooth Aluminum Toolbox Optional: 24″ D x 24″ H x 43″ L Aluminum Checkerplate Toolbox Optional: 24″ D x 24″ H x 43″ L Premium Smooth Aluminum Toolbox Optional: 24″ D x 30″ H x 43″ L Premium Smooth Aluminum Toolbox Optional: Various Crossframe and Side Dunnage Options Available |
