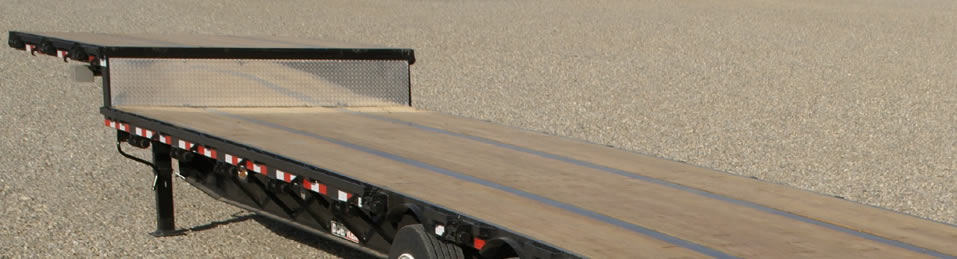

Our steel flats are built strong and light. In fact, our tare weight on all our steel decks rivals aluminum / steel combo flats of the same spec. Offering an all steel platform offers incredible strength that is ready to work in the harshest of conditions. To protect your investment, we coat the steel outside with a 100% cold galvanization / zinc spray to combat corrosion. As always, part of our paint process ensures our trailers enter a large curing oven to ensure the perfect adhesion and paint properties when it leaves our production facility, enabling us to give you a finished paint product that is unmatched in the industry. Visit your local Doepker dealer for information.


Length 53′ (11′ Gooseneck)
Overall Width 8 1/2′
Deck Height Approx 59″ at Front and 41″ at Back
Distributed Load Approx 75000 Lbs
Outer Channel Rail Fixed Load Front of Lower Deck (over toolbox area) – 5500 Lbs per side
Ratings (Based on 1′ Point Load) Behind Toolbox Area to Front of Suspension Area – 7800 Lbs per side
Between Axles (above bolsters) – 3000 Lbs per side
Above Tires and Wheel Wells – Drive Over Only, No Fixed Load Rating
Tare Weight Approx 14100 Lbs
GVWR 37500 kg
Landing Gear Jost Magnum 2 Speed Landing Gear
King Pin Available in 18″ or 24″ Settings – 1/4″ or 3/8″ Coupler Plate
Main Beams Web: 3/16″ High Tensile
Flange: 3/8″ x 6″ High Tensile Steel
Cross Members 4″ High Tensile Jr I Beam on 16″ Centers
Knee Bracing at 48″ Centers Ahead of Suspension
Optional: Additional Knee Bracing Between Existing Knee Bracing
Side Rail Tubing with 3/8 x 2″ Tie Bar on Bottom of Jr I-Beam or Channel with 3/8″ x 2″ Rub Rail
Optional: Channel with 3/8″ x 3″ HD Rub Rail
Stake Pockets Set at 48″ Centers
Optional: Stake Pockets Set at 24″ Centers
Rear Bumper 10 Gauge Plate Rear Bumper
Rear Impact Guard
Optional: Dock Bumpers at Back of Trailer
Winches D/S or Staggered Design – 25 Winches with J-Hooks on Opposite Side
Optional: Tarp Hooks on 24″ Centers
Decking 2″ x 6″ T & G Fir Decking
Optional: Hardwood Decking
Optional: Coil Option – 2″ x 6″ T & G Fir Outside Main Rails, Hardwood Inside Main Rails
Air System Aluminum Air Tanks
Inline Air Filtration System Built into Glad hands
Air Gauge Box with Window
Tires 255 70R22.5 Michelin or BF Goodrich
Rims 22.5: Various Steel and Aluminum Options
Serial Plate(s) Canada/U.S.
Safety Certified Yes
Blast Preparation Completely Steel Shot Blasted
Special Coatings Pure Zinc on Complete Outside Top To Bottom
Primer PPG Epoxy Primer Inside and Out
Top Coat PPG Urethane / Acrycote Systems – All Colours Available
Professional Cure System Entire Trailer put in Heat Ovens for Optimal Paint Adhesion
Safety Reflective Tape
System Hendrickson Intraax HXL5 Long Life Dressed Axle – AANL-23K-LDA-6.5 Air Ride with Cam Tube Enclosures
Optional: Truckweight Wireless Scale System
Optional: Chain Axle Slings on all Axles
Brakes Abex 16 1/2″ x 7″ Extended Life
Antilock Braking System Meritor Wabco 2S2M
Optional: 4S2M or 6S4M (with 2 Indicator Lights)
Axle Spread 60″ Tridem; 77-1/2″ Track Width
Auto Slack Adjusters Gunite
Spring Brake Pots 30/30 TSE Omnibrake
Optional: TSE Ultra-Life
Wheel End Cast Hub and Drum
Optional:  Duralight Hub and Centrifuse Drum Combinations
Optional: Hubodometer – Metric or Imperial
Wiring Harness Severe Duty Sealed Harness System
Custom Designed by Trucklite for our Light Packages
Lighting Trucklite LED as per CMVSS with Side Signals
Optional: 2 Strobe Lights at Back with Switch in Air Guage Box
Optional: 7 Wire Socket at Back
Optional: 4 Wire Socket at Back
Optional: Wide Load Lights
Mudflaps Doepker Mudflaps at Back of Trailer
Optional: Mudflaps in Front of Brake Bots on Front Axle
Optional: Mudflaps Full Width in Front of Landing Gear
Toolbox & Dunnage Options Optional: Set of Toolbox Brackets on C/S for a 43″ or 55″ Long Box
Optional: 24″ D x 16″ H x 55″ L Aluminum Checkerplate Toolbox
Optional: 24″ D x 16″ H x 55″ L Premium Smooth Aluminum Toolbox
Optional: 24″ D x 16″ H x 43″ L Aluminum Checkerplate Toolbox
Optional: 24″ D x 16″ H x 43″ L Premium Smooth Aluminum Toolbox
Aluminum Pipe Bunks Optional: Aluminum Pipe Bunks – Lightweight Design
Spare Tire Carrier Optional: Spare Tire Carrier on C/S
