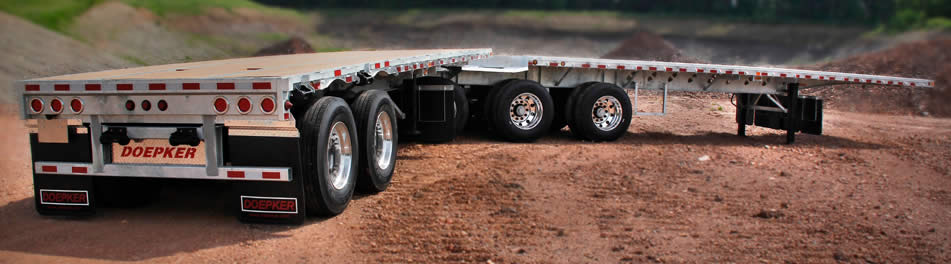

GALVANIZED SUPER B FLATS
We’ve done it again and are offering another industry changing technology on our flat deck, drop deck and Super B deck trailers. Completely dipped in 850 degree hot molten zinc gives you 4 layers of galvanized protection, 2 of which become integral and built into the steel itself. Our process is backed by a 10 year limited corrosion resistant warranty. Our galvanization process offers better corrosion resistance than aluminum yet maintains the major strength benefit of steel. The opportunity for you to retire before your original purchased flat deck does is now a reality! Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.
SPECIFICATIONS
| STANDARD FEATURES | |
| Models | DSL 30 or DSL 50 – Both Available in Tubing or Channel Side Rail |
| Length | 32′ Lead; 28′ Rear |
| Overall Width | 8 1/2′ |
| Deck Height | DSL 30 – Approx 58″ at Front and 50″ at Back DSL 50 – Approx 58″ at Front and 53″ at Back |
| Distributed Load | Distributed Load – All Models – Approx 110000 Lbs DSL 30 – 10′ Concentrated Load – Approx 40000 Lbs DSL 30 – 4′ Concentrated Load – Approx 30000 Lbs DSL 50 – 10′ Concentrated Load – Approx 60000 Lbs DSL 50 – 4′ Concentrated Load – Approx 50000 Lbs |
| Tare Weight | TBD |
| GVWR | 35000 kg – Lead, 35000 kg – Rear |
| Landing Gear | Jost Magnum 2 Speed Landing Gear Optional: Holland 2 Speed Landing Gear |
| King Pin | Lead Set at 30″ or 36″ – 1/4″ or 3/8″ Coupler Plate Available Rear Set at 24″ – 1/4″ or 3/8″ Coupler Plate Available |
| Main Beams | Web: 3/16″ High Tensile Flange: 3/8″ x 6″ High Tensile Steel Bottom Flange on Lead of DSL 50 Only: 1/2″ x 6″ High Tensile Steel |
| Cross Members | DSL 30 – 4″ High Tensile Jr I Beam on 18″ Centers DSL 50 – 4″ High Tensile Jr I Beam on 12″ Centers |
| Side Rail – Channel | 6″ Channel with 3/8″ x 2″ Rub Rail Stake Pockets Set at 24″ Centers |
| Rear Bumper | 10 Gauge Formed Panel Rear Bumper Rear Impact Guard on Rear Trailer Optional: Dock Bumpers on Back of Rear Trailer Optional: Tow Hooks at Back of Rear Trailer |
| Winches | D/S Layout With Bolt-On Design – 30 Winches (16 on Lead; 14 on Rear D/S, 2 on Rear C/S at Back) Optional: 2 Winches at Back of Rear With Cross Pallet Hook Assembly at 4′ – 1″ Optional: Tarp Hooks on 24″ Centers |
| Decking | 2″ x 6″ T & G Fir Decking Optional: Coil Option – 2″ x 6″ T & G Fir Outside Main Rails, Hardwood Inside Main Rails |
| Air System | Aluminum Air Tanks Inline Air Filtration System Built into Glad hands Air Gauge Box with Window |
| Tires | Michelin or BF Goodrich |
| Rims | Various Steel and Aluminum Options |
| Serial Plate(s) | Canada/U.S. |
| Safety Certified | Yes |
| PAINT AND FINISH | |
| Special Coatings | Hot Dip Galvanized Main Deck and Frame Landing Gear Painted Black Softcoat Grey Coating on Suspension |
| Safety | Reflective Tape |
| SUSPENSION | |
| System | Hendrickson Intraax HXL5 Long Life Dressed Axle – AANT-23K-LDA-14 Air Ride with Cam Tube Enclosures Optional: Doepker Auto Lift management System with Meritor Control Valve |
| Brakes | Abex 16 1/2″ x 7″ Extended Life |
| Antilock Braking System | Meritor Wabco 2S2M on Lead; Optional: 4S2M Meritor Wabco 2S1M on Rear; Optional: 2S2M |
| Axle Spread | Lead – 60″ Tridem, Rear – 49″ Tandem, 77 1/2″ Track Width |
| Auto Slack Adjusters | Gunite |
| Spring Brake Pots | 30/30 TSE Omnibrake Optional: TSE Ultra-Life |
| Wheel End | Cast Hub and Drum Optional: Duralight Hub and Centrifuse Drum Combinations Optional: Hubodometer – Metric or Imperial |
| LIGHTING | |
| Wiring Harness | Severe Duty Sealed Harness System Custom Designed by Grote for our Light Packages |
| Lighting | Grote LED as per CMVSS with Side Signals Optional: Wide Load Lights ts |
| PROTECTIVE FEATURES | |
| Mudflaps | Doepker Mudflaps at Back of Lead and Rear Trailers Mudflaps in Front of Brake Bots on Front Axle Mudflaps Full Width in Front of Landing Gear |
| Fenders | Aluminum Checkerplate Over Center Axle of Tridem Group on Lead Trailer Aluminum Platform on Back of Lead |
| Forklift Brackets | Optional: Forklift Brackets on Rear Trailer Including Chain Axle Slings |
| Chain Hangers | Optional: Tire Chain Hangers on C/S of Lead Trailer |
| Toolbox & Dunnage Options | Set of Toolbox Brackets on Lead D/S & C/S for a 55″ Long Box Set of Toolbox Brackets on Rear D/S & C/S for a 43″ Long Box Optional: 24″ D x 24″ H x 55″ L Aluminum Checkerplate Toolbox Optional: 24″ D x 24″ H x 55″ L Premium Smooth Aluminum Toolbox Optional: 24″ D x 24″ H x 43″ L Aluminum Checkerplate Toolbox Optional: 24″ D x 24″ H x 43″ L Premium Smooth Aluminum Toolbox Optional: Bolt-On Cross Frame Dunnage Rack Ahead of Suspension on Lead Trailer |
