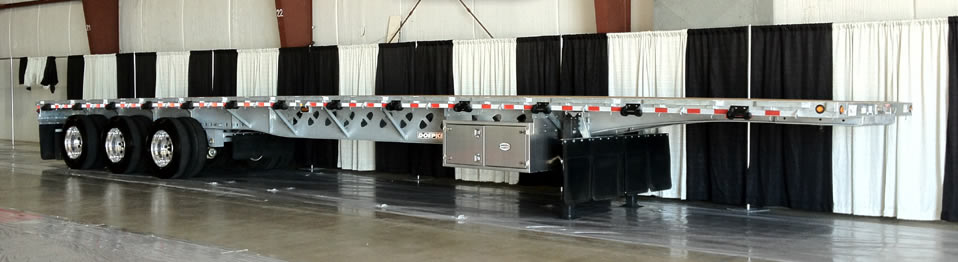

GALVANIZED FLAT DECKS

GALVANIZED FLAT DECKS

We’ve done it again and are offering another industry changing technology on our flat deck, drop deck and Super B deck trailers. Completely dipped in 850 degree hot molten zinc gives you 4 layers of galvanized protection, 2 of which become integral and built into the steel itself. Our process is backed by a 10 year limited corrosion resistant warranty. Our galvanization process offers better corrosion resistance than aluminum yet maintains the major strength benefit of steel. The opportunity for you to retire before your original purchased flat deck does is now a reality! Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.

SPECIFICATIONS

STANDARD FEATURES
Length 53′
Overall Width 8 1/2′
Deck Height Approx 59″ at Front and 55 1/2″ at Back
Distributed Load Approx 75000 Lbs
10′ Concentrated Load – Approx 60000 Lbs
4′ Concentrated Load – Approx 50000 Lbs
Tare Weight Approx 15400 Lbs
GVWR 37500 kg
Landing Gear Jost Magnum 2 Speed Landing Gear
King Pin Set at 24″ – 1/4″ or 3/8″ Coupler Plate Available
Main Beams Web: 3/16″ High Tensile
Top Flange: 3/8″ x 6″ High Tensile Steel
Bottom Flange: 1/2″ x 6″ High Tensile Steel
Cross Members 4″ High Tensile Jr I Beam on 16″ Centers
Side Rail 6″ Channel with 3/8″ x 2″ Rub Rail
Stake Pockets Set at 24″ Centers
Rear Bumper 10 Gauge Plate Rear Bumper
Rear Impact Guard
Doepker ICC Panel at Back
Winches Tarp Hooks on 24″ Centers
Staggered Layout With Bolt-On Design – 26 Winches With J Hook Opposite Side
Decking 2″ x 6″ T & G Fir Decking
Air System Aluminum Air Tanks
Inline Air Filtration System Built into Glad hands
Air Gauge Box with Window
Tires Michelin or BF Goodrich
Rims 22.5 or 24.5: Various Steel and Aluminum Options
Serial Plate(s) Canada/U.S.
Safety Certified Yes
PAINT AND FINISH
Special Coatings Hot Dip Galvanized Main Deck and Frame
Landing Gear Painted Black
Softcoat Grey Coating on Suspension
Safety Reflective Tape
SUSPENSION
System Hendrickson Intraax HXL5 Long Life Dressed Axle – AAT-23K-LDA-14 Air Ride with Cam Tube Enclosures
4′ Sliding Suspension on 6″ Spacings
Brakes Abex 16 1/2″ x 7″ Extended Life
Antilock Braking System Meritor Wabco 2S2M (2 Sensors / 2 Modulators)
Axle Spread 60″ Tridem
Auto Slack Adjusters Gunite
Spring Brake Pots 30/30 TSE Omnibrake
Wheel End Cast Hub and Drum
LIGHTING
Wiring Harness Severe Duty Sealed Harness System
Custom Designed by Grote for our Light Packages
Lighting Grote LED as per CMVSS with Side Signals
7 Wire Socket at Back
PROTECTIVE FEATURES
Mudflaps Doepker Mudflaps at Back of Trailer
Mudflaps in Front of Brake Bots on Front Axle
Mudflaps Full Width in Front of Landing Gear
Toolbox & Dunnage Options Set of Toolbox Brackets on D/S & C/S for a 55″ Long Box
Optional: 24″ D x 24″ H x 55″ L Aluminum Checkerplate Toolbox
Optional: 24″ D x 24″ H x 55″ L Premium Smooth Aluminum Toolbox
