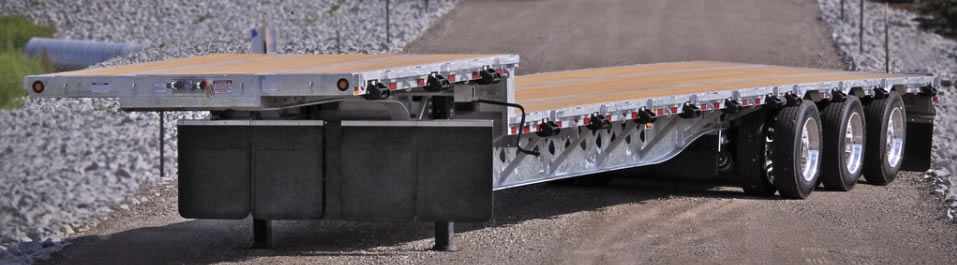

GALVANIZED DROP DECKS

GALVANIZED DROP DECKS

We’ve done it again and are offering another industry changing technology on our flat deck, drop deck and Super B deck trailers. Completely dipped in 850 degree hot molten zinc gives you 4 layers of galvanized protection, 2 of which become integral and built into the steel itself. Our process is backed by a 10 year limited corrosion resistant warranty. Our galvanization process offers better corrosion resistance than aluminum yet maintains the major strength benefit of steel. The opportunity for you to retire before your original purchased flat deck does is now a reality! Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.

SPECIFICATIONS

STANDARD FEATURES
Length 53′ (11′ Gooseneck)
Overall Width 8 1/2′
Deck Height Approx 59″ at Front and 41″ at Back
Distributed Load Approx 75000 Lbs
10′ Concentrated Load – Approx 55000 Lbs
4′ Concentrated Load – Approx 50000 Lbs
Outer Channel Rail Fixed Load Front of Lower Deck (over toolbox area) – 5500 Lbs per side
(Based on 1′ Point Load) Behind Toolbox Area to Front of Suspension Area – 7800 Lbs per side
Between Axles (above bolsters) – 3000 Lbs per side
Above Tires and Wheel Wells – Drive Over Only, No Fixed Load Rating
Tare Weight Approx 15200 Lbs
GVWR 37500 kg
Landing Gear Jost Magnum 2 Speed Landing Gear
King Pin Set at 18″ – 1/4″ Coupler Plate
Main Beams Web: 3/16″ High Tensile
Top Flange: 3/8″ x 6″ High Tensile Steel
Bottom Flange: 1/2″ x 6″ High Tensile Steel on Upper Lever, 3/8″ x 6″ High Tensile Steel on Lower Level
Cross Members 4″ High Tensile Jr I Beam on 16″ Centers
Knee Bracing at 48″ Centers Ahead of Suspension
Side Rail Channel with 3/8″ x 2″ Rub Rail
Stake Pockets Set at 24″ Centers
Rear Bumper 10 Gauge Plate Rear Bumper
Winches D/S Layout With Bolt-On Design – 5 Fixed Winches on Upper Deck and 1 Fixed Winch at Back of Lower Deck With J Hook Opposite Side; Sliding Winch Track on D/S Lower Deck With 11 Sliding Winches J Hook Opposite Side on 12″ Centers
Staggered Layout With Bolt-On Design – 6 Winches on Upper Deck and 19 Winches on Lower Deck With J Hook Opposite Side
Decking 2″ x 6″ T & G Fir Decking
Air System Aluminum Air Tanks
Inline Air Filtration System Built into Glad hands
Air Gauge Box with Window
Tires 255 70R22.5 Michelin or BF Goodrich
Rims 22.5: Various Steel and Aluminum Options
Serial Plate(s) Canada/U.S.
Safety Certified Yes
PAINT AND FINISH
Special Coatings Hot Dip Galvanized Main Deck and Frame
Landing Gear Painted Black
Softcoat Grey Coating on Suspension
Safety Reflective Tape
SUSPENSION
System Hendrickson Intraax HXL5 Long Life Dressed Axle – AANL-23K-LDA-6.5 Air Ride with Cam Tube Enclosures
Brakes Abex 16 1/2″ x 7″ Extended Life
Antilock Braking System Meritor Wabco 2S2M (2 Sensors / 2 Modulators)
Axle Spread 60″ or 72″ Tridem Available; 77-1/2″ Track Width
Auto Slack Adjusters Gunite
Spring Brake Pots 30/30 TSE Omnibrake
Wheel End Cast Hub and Drum
Hubodometer – Metric
LIGHTING
Wiring Harness Severe Duty Sealed Harness System
Custom Designed by Grote for our Light Packages
Lighting Grote LED as per CMVSS with Side Signals
7 Wire Socket at Back
Wide Load Lights
PROTECTIVE FEATURES
Mudflaps Doepker Mudflaps at Back of Trailer
Mudflaps in Front of Brake Bots on Front Axle
Mudflaps Full Width in Front of Landing Gear
Toolbox Options Set of Toolbox Brackets on C/S for a 55″ Long Box
Set of Toolbox Brackets on D/S for a 55″ Long Box – Available on Stagggered Winch Layout Only
Optional: 24″ D x 16″ H x 55″ L Aluminum Checkerplate Toolbox
Optional: 24″ D x 16″ H x 55″ L Premium Smooth Aluminum Toolbox
Aluminum Pipe Bunks Optional: Aluminum Pipe Bunks – Lightweight Design
