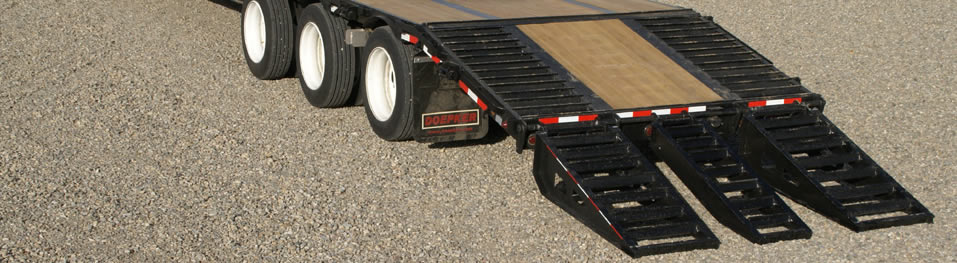

GALVANIZED DROP DECKS WITH FLIPS
We’ve done it again and are offering another industry changing technology on our deck trailers. Completely dipped in 850 degree hot molten zinc gives you 4 layers of galvanized protection, 2 of which become integral and built into the steel itself. Our process is backed by a 10 year limited corrosion resistant warranty. Our galvanization process offers better corrosion resistance than aluminum yet maintains the major strength benefit of steel. The opportunity for you to retire before your original purchased flat deck does is now a reality! Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.
SPECIFICATIONS
| STANDARD FEATURES | |
| Length | 53′ (11′ Gooseneck) |
| Overall Width | 8 1/2′ |
| Deck Height | Approx 59″ at Front and 41″ at Back |
| Distributed Load | Approx 75000 Lbs 10′ Concentrated Load – Approx 55000 Lbs 4′ Concentrated Load – Approx 50000 Lbs |
| Outer Channel Fixed Load Rating (Based on 1′ Point Load) |
Front of Lower Deck (over toolbox area) – 5500 Lbs per side Behind Toolbox Area to Front of Suspension Area – 7800 Lbs per side Between Axles (above bolsters) – 3000 Lbs per side Above Tires and Wheel Wells – Drive Over Only, No Fixed Load Rating |
| Tare Weight | Approx 16200 Lbs |
| GVWR | 37500 kg |
| Landing Gear | Jost Magnum 2 Speed Landing Gear |
| King Pin | Available in 18″ or 24″ Settings – 1/4″ or 3/8″ Coupler Plate |
| Main Beams | Web: 3/16″ High Tensile Top Flange: 3/8″ x 6″ High Tensile Steel Bottom Flange: 1/2″ x 6″ High Tensile Steel on Upper Lever, 3/8″ x 6″ High Tensile Steel on Lower Level |
| Cross Members | 4″ High Tensile Jr I Beam on 16″ Centers Knee Bracing at 32″ Centers Ahead of Suspension |
| Side Rail | Channel with 3/8″ x 2″ Rub Rail Stake Pockets Set at 24″ Centers |
| Rear Bumper | 10 Gauge Plate Rear Bumper 5′ Fixed Beavertail c/w Spring Assist Flip Ramps Optional: Additional Lightweight Flip Ramp 16″ Wide at Center at Back Optional: Additional Heavy Duty Flip Ramp 16″ Wide at Center at Back |
| Winches | D/S Layout With Bolt-On Design – 5 Fixed Winches on Upper Deck and 2 Fixed Winches on Beavertail With J Hook Opposite Side; Sliding Winch Track on D/S Lower Deck With 9 Sliding Winches J Hook Opposite Side on 12″ Centers Staggered Layout With Bolt-On Design – 6 Winches on Upper Deck and 18 Winches on Lower Deck With J Hook Opposite Side |
| Decking | 2″ x 6″ T & G Fir Decking |
| Air System | Aluminum Air Tanks Inline Air Filtration System Built into Glad hands Air Gauge Box with Window |
| Tires | 255 70R22.5 Michelin or BF Goodrich |
| Rims | 22.5: Various Steel and Aluminum Options |
| Serial Plate(s) | Canada/U.S. |
| Safety Certified | Yes |
| PAINT AND FINISH | |
| Special Coatings | Hot Dip Galvanized Main Deck and Frame Landing Gear Painted Black Softcoat Grey Coating on Suspension |
| Safety | Reflective Tape |
| SUSPENSION | |
| System | Hendrickson Intraax HXL5 Long Life Dressed Axle – AANL-23K-LDA-6.5 Air Ride with Cam Tube Enclosures |
| Brakes | Abex 16 1/2″ x 7″ Extended Life |
| Antilock Braking System | Meritor Wabco 2S2M (2 Sensors / 2 Modulators) |
| Axle Spread | 60″ or 72″ Tridem Available; 77-1/2″ Track Width |
| Auto Slack Adjusters | Gunite |
| Spring Brake Pots | 30/30 TSE Omnibrake |
| Wheel End | Cast Hub and Drum Hubodometer – Metric |
| LIGHTING | |
| Wiring Harness | Severe Duty Sealed Harness System Custom Designed by Grote for our Light Packages |
| Lighting | Grote LED as per CMVSS with Side Signals 7 Wire Socket at Back Wide Load Lights |
| PROTECTIVE FEATURES | |
| Mudflaps | Doepker Mudflaps at Back of Trailer Mudflaps in Front of Brake Bots on Front Axle Mudflaps Full Width in Front of Landing Gear |
| Toolbox Options | Set of Toolbox Brackets on C/S for a 55″ Long Box Set of Toolbox Brackets on D/S for a 55″ Long Box – Available on Stagggered Winch Layout Only Optional: 24″ D x 16″ H x 55″ L Aluminum Checkerplate Toolbox Optional: 24″ D x 16″ H x 55″ L Premium Smooth Aluminum Toolbox |
| Aluminum Pipe Bunks | Optional: Aluminum Pipe Bunks – Lightweight Design |
